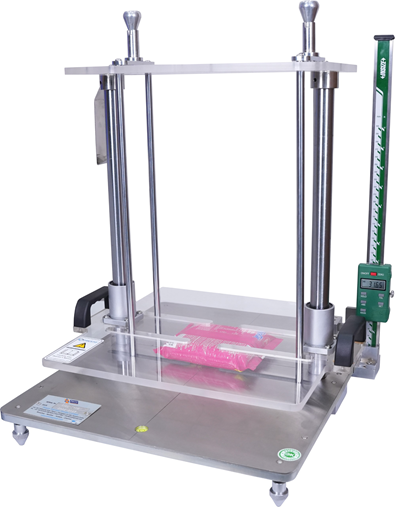

Air Bulge Tester

The Packaging Material Bulge Resistance Tester is a reliable solution for measuring the strength and durability of films, foils, laminates, and paper. This advanced Air Pressure Bulge Tester serves as a versatile film and paper durability testing machine and ensures accurate results through precise pneumatic control. Widely used in packaging, R&D, and quality control labs, it functions as a dependable bulge resistance measurement equipment, foil strength testing instrument, and paper and film bulge resistance tester. Additionally, it can be adapted for use as an air fill tester or air filter testing machine, making it a multi-purpose testing solution.

• Model: PABT-300
• Test Type: Pneumatic air pressure bulge resistance test
• Pressure Range: 0 – 300 kPa (customizable as per requirement)
• Resolution: 0.1 kPa for precise measurement
• Test Materials: Packaging films, laminates, foils, and paper
• Clamping System: Pneumatic clamping for secure sample holding
• Bulge Measurement Range: Up to 50 mm (optional ranges available)
• Sensor Type: High-accuracy pressure transducer with digital output
• Display: Digital display showing pressure and bulge readings
• Power Supply: 220 V, 50 Hz, single phase
• Safety Features: Automatic pressure release and overload protection
• Construction: Compact, sturdy bench-top design for laboratories and industries
• Standards Compliance: Conforms to international packaging test standards

• Strong and durable body designed for long service life
• Advanced pneumatic system ensures accurate bulge resistance testing
• High-precision pressure sensors for reliable and repeatable results
• Digital display for clear and easy reading of test values
• Pneumatic clamping mechanism to hold samples firmly during testing
• Adjustable pressure settings to suit different materials and grades
• Compact bench-top design ideal for laboratories and production units
• Low maintenance with user-friendly operation
