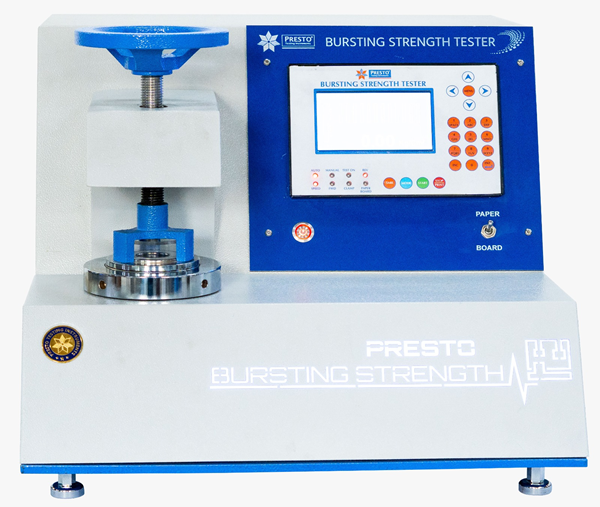

Bursting Strength Tester Digital

Bursting Strength Tester Digital
PDF Image Video Image

Bursting Strength Tester Digital

3.5 out of 5
Model No:- PBD - 400

The digital bursting strength tester for materials is considered one of the most crucial qualities that every box manufacturer needs to prioritize. By testing the bursting strength of boxes, you can ensure the quality of products delivered to customers.

Presto has designed Burst Genie 2.0 to test the bursting strength of materials like corrugated boxes, fiberboards, uneven boards, and boxes. With the use of this lab testing instrument, one can easily ensure that the boxes will not burst in between shipping or transportation.

The digital bursting strength tester for materials is considered one of the most crucial qualities that every box manufacturer needs to prioritize. By testing the bursting strength of boxes, you can ensure the quality of products delivered to customers.

Presto has designed Burst Genie 2.0 to test the bursting strength of materials like corrugated boxes, fiberboards, uneven boards, and boxes. With the use of this lab testing instrument, one can easily ensure that the boxes will not burst in between shipping or transportation.

..read more

Need more information or have a question?

This amazing lab testing instrument will easily measure the resistance of boxes from getting bursts. This highly advanced model will allow the users to calculate automatic burst factor calculation in the paper. Besides this, this new model of bursting strength tester can hold up to 9 test readings. With its feather touch controls, you will be able to test the bursting strength of boxes with ease.

Working principle of bursting strength tester

The working principle of a bursting strength tester involves applying increasing pressure to a small area of a material, such as paper or cardboard, until it bursts. This process begins by securely clamping the material in place within the tester. Then, a hydraulic or pneumatic system gradually increases the pressure on the material. As the pressure rises, sensors detect the resistance of the material until it ruptures, at which point the maximum pressure reached is recorded. This measurement provides a quantitative assessment of the material's bursting strength, which is essential for evaluating its suitability for various applications, particularly in packaging where it needs to withstand pressure to protect its contents.



  • Capacity: 40 kg/cm²
  • Display: LED (Digital)
  • Accuracy: ± 1% within 10% to 90% of the entire range as per IS: 1828 with the master gauge
  • Least Count/Resolution: 0.1Kg/cm2
  • Power: 220V, Single phase, 50 Hz
  • Test fluid: Glycerin is about 98% purified (lab grade)
  • Rate of fluid displacement: 95 cc/minute
  • Motor: 1/4 HP Single Phase, 1440 rpm
  • Test Range: 1Kg / cm to 38 Kg / cm2
  • Test value storage capacity: Holds up to 9 test values
  • Peak Hold Feature: Included
  • Safety Switch: Present
  • Construction Material: Mild Steel
  • Surface Finish: Powder-coated in a combination of Havel Gray & Blue, with bright chrome/zinc plating for corrosion resistance
  • Report Generation: Yes, includes Sample Results and Bar Graph
  • Built-in Thermal Printer: Yes
  • Dimensions: 540 x 600 x 450 mm

The Presto bursting strength tester has been made in accordance with industrial standards like IS 2508:1984(R2003), and ASTM D1709-16A. This makes it easy for the manufacturer to conduct the bursting strength test on the materials. Below we have listed the features of this amazing lab testing equipment

  • Automated calculation of burst factor for paper materials
  • Simple single-button operation for user convenience
  • Microprocessor-based display for precise and reliable test results
  • Peak Hold function to retain the maximum test result value in memory
  • Storage capacity for up to 9 test readings
  • Exceptional accuracy in tests conducted under multidirectional forces
  • Robust gripping clamps to secure the specimen firmly
  • Grooved design of the Test Specimen Holder to prevent slippage and ensure secure specimen placement during testing
  • Eliminates slippage when the specimen is uniformly tightened using the operating wheel
  • Bright LED display for clear visibility of test data
  • User-friendly feather touch controls
  • Security feature with calibration lock and key

Optional Features:

  • Additional options include pneumatic and computerized models, with or without a built-in printer.
  • The bursting strength of the test specimen is displayed in Kg/cm² on the digital screen.
  • Users can subsequently calculate the bursting factor and burst index as needed.
Get a Quote
or
Call for Our Best Deal
+91 8882149230

How Bursting Strength Tester Digital Works?

Related Products

FAQ's

Q. Why are bursting strength tester important in the industry?

Bursting Strength Tester is a high quality lab testing instrument to test the bursting strength and execution of materials like paper sheets, paper, lopsided sheets and boxes, corrugated boxes and much more. Bursting strength is the power expected to explode or burst the material under testing. The bursting strength of the test example is communicated regarding Kg/cm². It is estimated by giving water-powered tension through an elastic stomach on the test example.

Q. How to identify verified bursting strength tester manufacturers?

Among a large number of bursting strength tester manufacturers in India, it is imperative to find the right one by looking at all the reviews that are available for users on the net or to check whether there is a registration number properly available or not. Also make sure the bursting strength tester manufacturer have a well setup manufacturing unit and the customer support.

Q. What is the bursting strength tester price in India?

The price of burst testing Instruments varies. The variance is completely dependent on what kind of needs you have and how you need to proceed with it. The higher price bracket will represent quality and advance features of the product.

Q. Do the bursting strength tester come with a warranty?

The bursting strength tester comes with a warranty of one year.

Q. Do you provide customer support for bursting strength tester?

Yes, Presto provides full customer support for bursting strength tester both before and after the purchase. It is always important to give priorities to the customers and hence the bursting strength tester customers can get support at info@prestogroup.com or by calling +919210903903.
